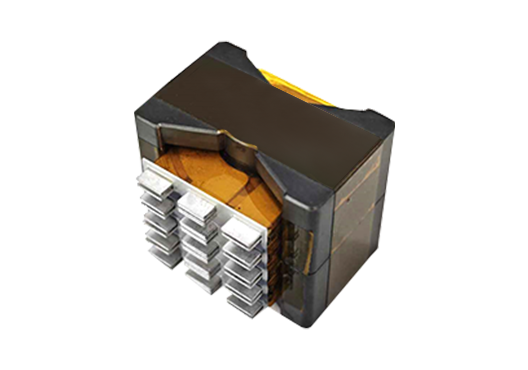

Planar Transformer
FPE's Planar transformers are widely utilized in power adapters, power management systems, LED lighting, industrial control systems, and communication base stations.
Parameter：
| Number | Topology | Input Voltage (V) | Working Frequency (kHz) | Output Power | Turns Ratio | Primary Inductance L(μH) | Leakage Inductance Lk(μH) | Rated Current (A) | Dielectric Strength(V) | Length (mm) | Width (mm) | Height (mm) | Installation Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T01150257 | 全橋 | 400 | 300 | 400 | 14:1:1 | 86 | 2 | 50 | 3000 | 53.5 | 52 | 35 | THT |
Specification：
